Mégajoule laser

Nuclear testing simulation centre of the French atomic energy commission (CEA)

Infrastructure Projects/Civil Engineering

France, 2003-2008

General description

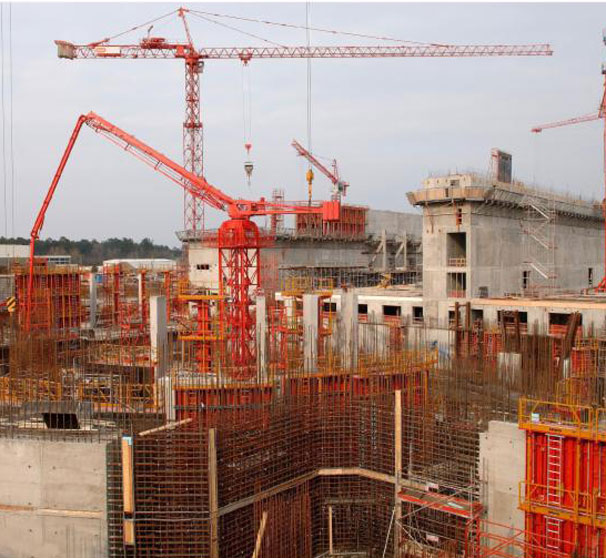

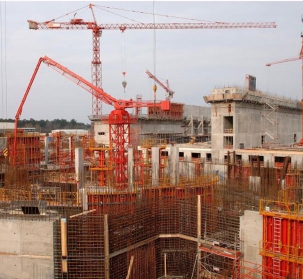

For construction of the Megajoule nuclear testing centre, three companies of the Bouygues Construction group were appointed to carry out civil and mechanical & electrical works (lifts, travelling cranes, heavy doors, etc.).

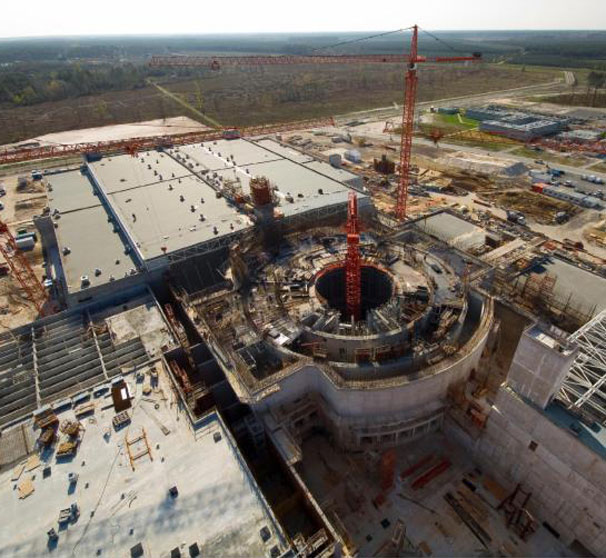

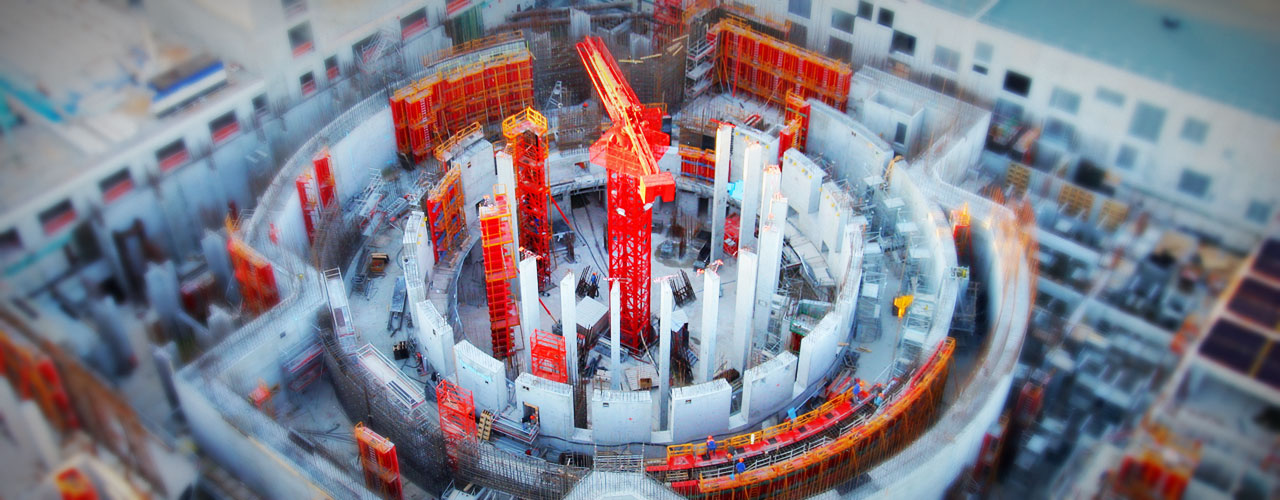

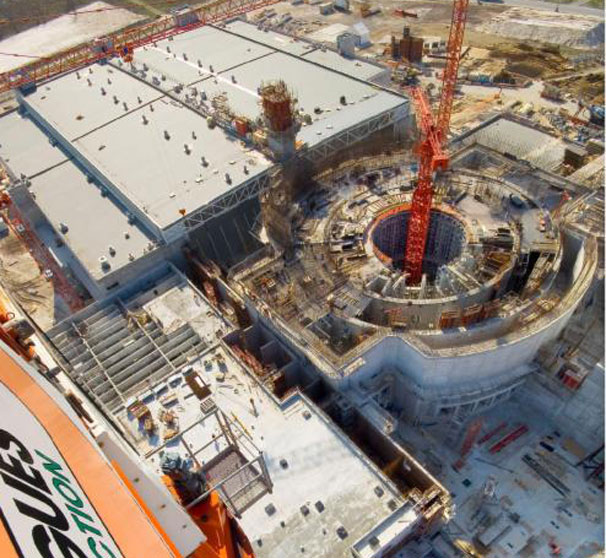

The testing hall in the centre of the building is surrounded by two halls from which 240 laser beams are fired. The central hall is surrounded by two walls measuring 1 and 2 metres in thickness. The floor slabs above and below are 2.50 and 1.40 m thick respectively.

To meet the severe stability criteria, the foundations of the building are designed to prevent movement and vibration due to natural phenomena (ground settlement, wind, variation in groundwater level, etc.).

Consortium

BOUYGUES TRAVAUX PUBLICS (lead firm) / DV CONSTRUCTION / QUILLE

Project owner

COMMISSARIAT A L'ENERGIE ATOMIQUE

Key figures

150,000 m³

of concrete

300m x 150m

width x length

2 m

thick walls around testing hall
